Refcomp SP4HF1500 SP4HF150E R22 Semi Sealed Compressor for Condensing Unit
Product Description
The semi sealed compressor (SP4HF1500/SP4HF150E) is built for medium-to-high temperature commercial refrigeration, liquid chillers, and industrial HVAC applications. Operating with a 4-cylinder reciprocating design, it delivers a displacement of 49 m³/h at 50Hz (58.8 m³/h at 60Hz) powered by a 15 HP (11.2 kW) motor, delivering reliable energy efficiency under continuous operating loads.
Key Features
- Flexible Step Capacity Modulation: 2-stage capacity regulation (50% and 100%) adapts to dynamic thermal load changes and optimizes power consumption during part-load cycles.
- 360° Rotatable Shut-off Valves: High-flow suction and discharge shut-off valves with 360° rotational adjustment for flexible mechanical room layouts and simplified pipe routing.
- Integrated High-Density Suction Filter: Internal filter element captures debris and particulate matter before refrigerant reaches the motor winding chamber, allowing quick inspection and easy cleaning.
Applications
- Commercial Supermarket & Cold Storage: Stable cooling for walk-in coolers, medium-temperature display cabinets, and regional food storage rooms.
- Commercial Chillers & HVAC: Ideal for air-cooled and water-cooled liquid chillers, packaged HVAC units, and industrial environmental control systems.
- Industrial Process Cooling: Constant displacement cooling for commercial food manufacturing, beverage cooling, and process fluid lines.

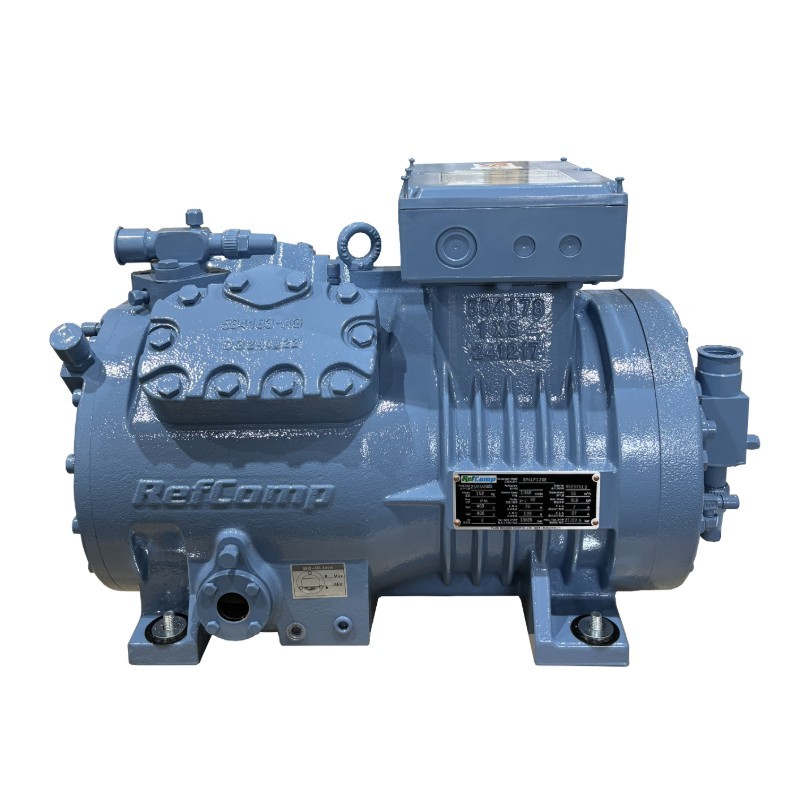

Product Image
Technical Parameters
| Model |
SP4HF1500/SP4HF150E |
| Rated power |
15HP/11.2KW |
| Exhaust volume (50/60Hz) |
49/58.8 m³/hr |
| Standard motor |
400V/3/50Hz, 460V/3/60Hz PW |
| Oil lubrication method |
Pressure lubrication (with oil pump) |
| Cylinders |
4 |
| Oil Charge |
2.6L |
| Weight |
152KG |
Company Introduction
Coolstart is a global supplier of commercial and industrial refrigeration equipment, specializing in high-performance reciprocating, scroll, and screw compressor technologies. Built for long-term operational durability and strict compliance with international efficiency standards, our products feature precision manufacturing and flexible OEM/ODM customization. Coolstart supports contractors, system builders, and equipment manufacturers across Europe, North America, the Middle East, and Asia-Pacific.
Frequently Asked Questions
Q1: What is the exact displacement and motor output of the SP4HF1500/SP4HF150E compressor?
A1: At 50Hz, it delivers 49 m³/h displacement with a 15 HP (11.2 kW) motor; at 60Hz, it provides 58.8 m³/h displacement.
Q2: What capacity control options are built into the SP4HF1500/SP4HF150E?
A2: The 4-cylinder SP4HF1500 supports 2-stage step capacity regulation at 50% and 100%.
Q3: How are the shut-off valves configured on this model?
A3: The suction and discharge shut-off valves feature a 360° rotatable flange connection for flexible piping setup.
Q4: What is the standard lead time for sample and mass production orders?
A4: In-stock sample units ship within 3 business days, while standard mass production orders take 10 to 15 working days.
Q5: What commercial terms and warranty does Coolstart offer?
A5: All units come with a 1-year standard factory warranty. Orders are fulfilled under FOB Shenzhen or EXW terms, with payment accepted via TT or Western Union in USD.
Request a Technical Quote for SP4HF1500
Our application engineering team provides custom technical proposals and direct factory quotes within 8 hours of receiving your inquiry. Contact Coolstart today to optimize your cooling system performance and receive a competitive quotation.
